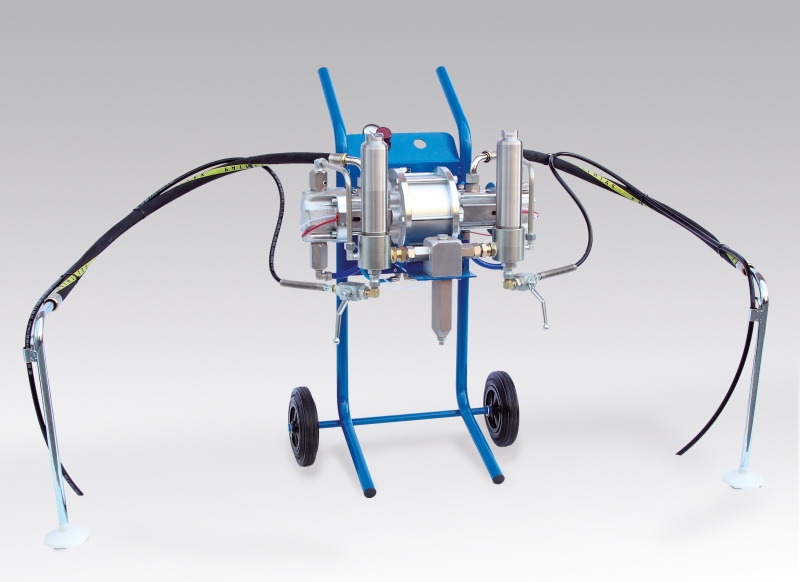

7/30 2C

Model:	7/30 2C CE (Atex EX II 2G c T4)
Pressure Ratio:	30:1
Flow rate:	7 liters/min. open outlet with water and at 5 bars with 3/8” outlet
2C:	two-component
Pressure < supply:	1 bar
Pressure > supply:	6 bar
Air Consumption:	6 bar and, at 10 cycles per minute, 127 liters
Air supply inlet:	da 3/8"
Cubic capacity per cycle:	76 cc
Maximum cycles recommended:	16 al 1’



Technical notes

- The pump can work without any pressure drop up to 15 complete cycles per minute (30 strokes)
- The pneumatic motor is in aluminum, diam. 160 mm with a stroke of 54 mm; it uses 127 liters of air at 6 bar and 10 cycles per minute.
- Product outlet available both 3/8“ and 1/4" upon request.



NOTE:

the pump is suitable for product transfer
