ALSO AVAILABLE:
-
Two-component
-
Stainless steel fluid passages and filter
- Two-component
- Stainless steel fluid passages and filter

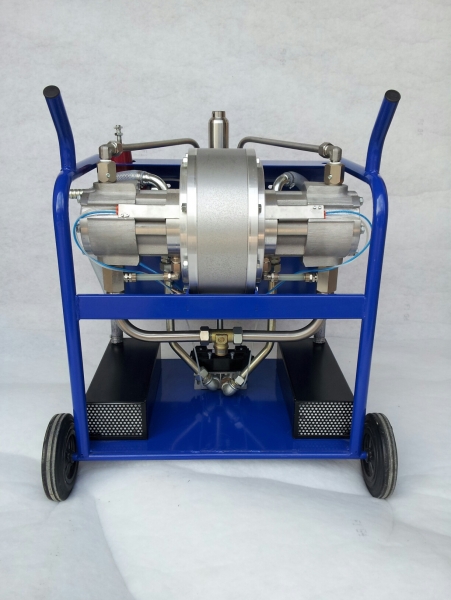

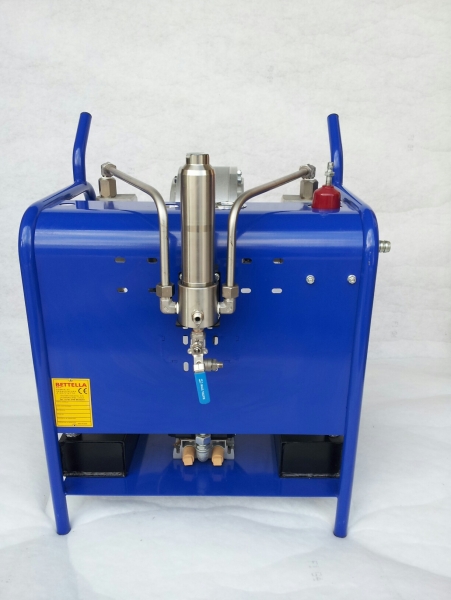

40/11 MC
| Model: | 40/11 MC CE (ATEX EX II 2G c T4) |
| Pressure Ratio: | 11:1 |
| Flow rate: | 40 liters/min. open outlet with water and at 5 bars with 3/8” outlet |
| MC: | single-component |
| Pressure < supply: | 1 bar |
| Pressure > supply: | 6 bar |
| Air Consumption: | 6 bar and, at 10 cycles per minute, 368 liters |
| Air supply inlet: | da 3/4" |
| Cubic capacity per cycle: | 542 CC |
| Maximum cycles recommended: | 16 per 1’ |
| Weight: | 114,5 Kg |
Technical notes
- - The pump can work without any pressure drop up to 15 complete cycles per minute (30 strokes)
- - The pneumatic motor is in aluminum, diam. 270 mm with a stroke of 54 mm; ; it uses 368 liters of air at 6 bar and 10 cycles per minute.
- - Product outlet available both 3/8“ and 1/2" upon request.
- - Stainless intake manifold, pipe diameter 28 mm with 1" joint
| NOTE: | the pump is suitable for product transfer |
