• Two-component
    • Stainless steel fluid passages and filter

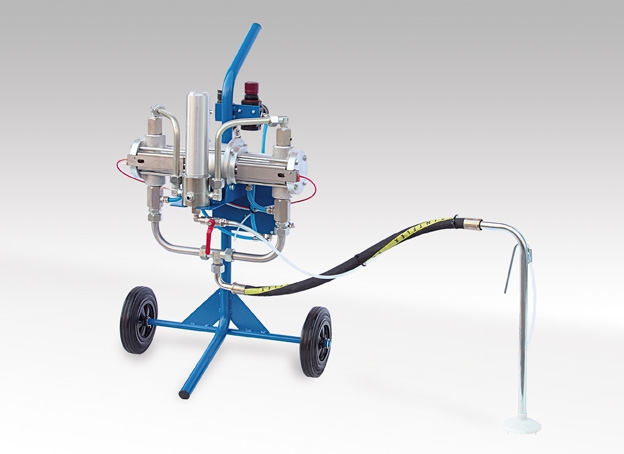

15/4 MC

Model: 15/4 mc ce (atex ex ii 2g c t4)
Pressure Ratio: 4:1
Flow rate: 15 liters/min. open outlet with water and at 5 bars with 3/8” outlet
MC: single-component
Pressure < supply: 1 bar
Pressure > supply: 6 bar
Air Consumption: 6 bar and, at 10 cycles per minute, 58 liters
Air supply inlet: da 3/8"
Cubic capacity per cycle: 153 cc
Maximum cycles recommended: 16 al 1’


 Technical notes

- The pump can work without any pressure drop up to 15 complete cycles per minute (30 strokes)
- The pneumatic motor is in aluminum, diam. 110 mm with a stroke of 39 mm; it uses 58 liters of air at 6 bar and 10 cycles per minute.
- Product outlet available both 3/8“ and 1/4" upon request.
- Stainless intake manifold, pipe diameter 22 mm with 3/4" joint


NOTE: the pump is suitable for product transfer; the pump can be supplied with hard oxide coating.
