ALSO AVAILABLE:

    • Two-component
    • Stainless steel fluid passages and filter

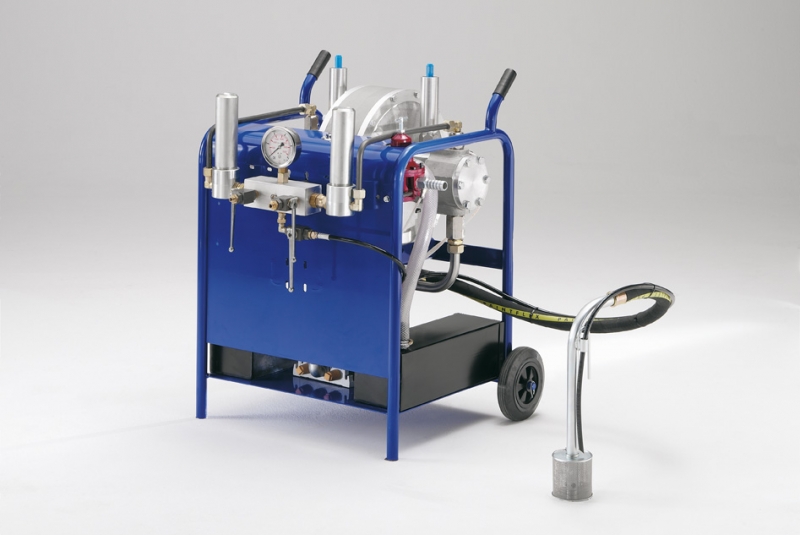

40/26 MC

Model: 40/26 MC CE (ATEX EX II 2G c T4)
Pressure Ratio: 26:1
Flow rate: 40 liters/min. open outlet with water and at 5 bars with 3/8” outlet
MC: single-component
Pressure < supply: 1 bar
Pressure > supply: 6 bar
Air Consumption: 6 bar and, at 10 cycles per minute, 852 liters
Air supply inlet: da 3/4"
Cubic capacity per cycle: 542 CC
Maximum cycles recommended: 16 al 1’

Technical notes

- The pump can work without any pressure drop up to 15 complete cycles per minute (30 strokes)
- The pneumatic motor is in aluminum, diam.  410 mm with a stroke of 54 mm; it uses 852 liters of air at 6 bar and 10 cycles per minute.
- Product outlet available both 3/8“ and 1/2" upon request.
- Stainless intake manifold, pipe diameter 28 mm with 1" joint



NOTE: the pump is suitable for product transfer
