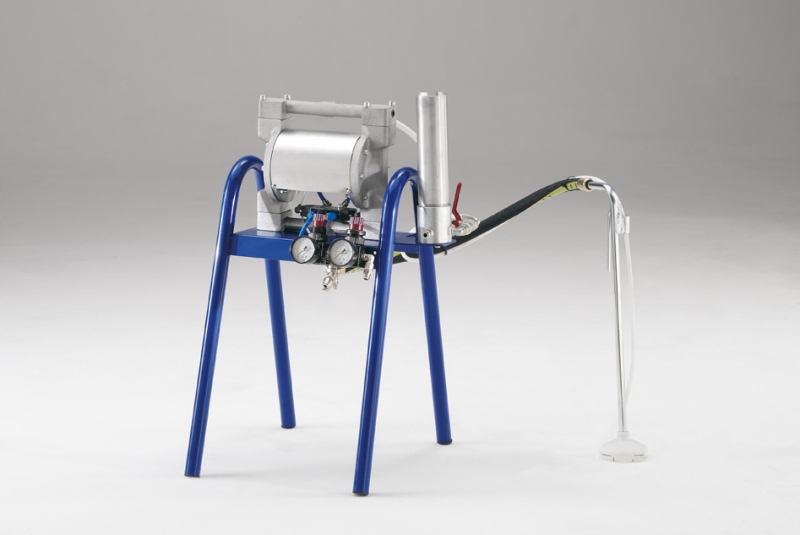

DM25
Model: | DM25 MC CE (ATEX EX II 2G c T4) |
Pressure Ratio: | 1:1 |
Flow rate: | 25 liters/min. open outlet with water and at 5 bars with 3/8” outlet |
MC: | single-component |
Pressure < supply: | 0,5 bar |
Pressure > supply: | 6 bar |
Air Consumption: | 6 bar and, at 10 cycles per minute, 852 liters |
Air supply inlet: | da 3/8" |
Composed of
- No. 1 3/8” inlet air regulator- No. 1 ¼”inlet air regulator for pulverization gun
- Motor completely in aluminum
- Steel bottom plate buffer volume with its 3/8” tap inclusive of bp 1/4" recycler pipe
- 3/4”dip tube in solvent resistant rubber
- Buffer volume tube in aluminum.
Construction characteristics
- The outlet and inlet valves are integrated inside the pump. The closure valve seats are in stainless steel and are equipped with a system of quick anti-reflux closure.- 1/4” pneumatic air valve
- special membranes made with a layer in rubberized fabric plus a layer in PTFE.
Technical notes
- The pump can work without any pressure drop, even at a pressure supply of 0,5 bar.- Product outlet available both 3/8“ and 1/4" upon request.
NOTE: | the pump is suitable for product transfer |
